30 mm Boring Bar Set

The 30 mm bar stock set is compatible with the BM40 Machine.

It is manufactured from a 62 HRC imported induction-hardened piston rod.

The surface features a 2.5 mm induction and chrome plating.

The hole spacing distance is 65 mm for ease of use.

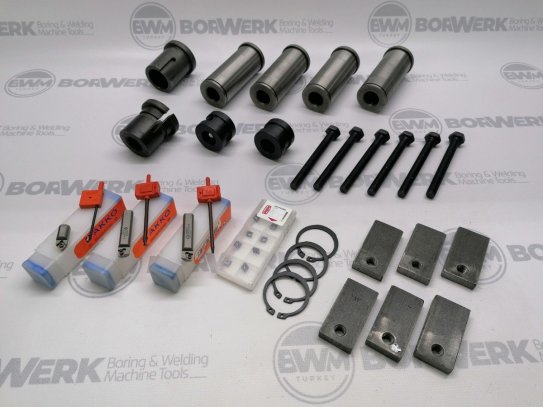

EQUIPMENT LIST:

1 adet 30 mm x 2000 mm shaft
4 adet main bearing bushing Q40X30X100mm
1 adet front cam steel bushing Q41X30X60mm
1 adet rear clamping pin bushing Ø40X30X50mm
2 adet centering ring
6 adet bolt M10X100mm
6 adet ring holder blade 10X30X60mm
10 adet CCMT06 Diamonds
1 adet right turning pen Q10X50mm SCACR
1 adet left turning pen Q10X50mm SCACL
1 adet vertical turning pen Q10X25mm SCMCN
4 adet Q40 External Segment
2 adet M8X9mm countersunk bolt set
