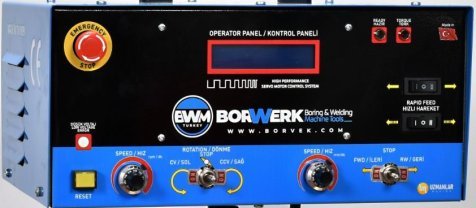

SERVO MOTOR CONTROL SYSTEM

  • CONTROL PANEL FUNCTIONS

    • Operating Voltage: AC 230v 50/60 Hz -10 amp.
    • Power On/Off Switch with Indicator Light
    • Emergency Stop Button
    • Left/Right Rotation Switch
    • Speed Control Dial with 10 Settings
      bm40 ön panel
    • Forward/Reverse Switch
    • Speed Control Dial with 10 Settings
    • Quick Movement Button
    • Reset Button
    • Control Screen
    • LCD SCREEN WARNINGS
    • Motor Failure Notification
    • Motor Operating Direction Notification
    • Spindle Rotation Speed Rpm Rev/Min.
    • High Voltage
    • Low Voltage
    • Overload

    The electronic system automatically balances its speed and torque force at small and large cutting depths.

    The repair time can be calculated using the LCD screen.
    Servo motor electronic power synchronization system means it operates stably without speed loss at high and low speeds. It automatically adjusts the speed and torque relationship.
