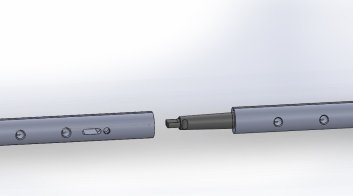

SPINDLE CARRIER BEARING SYSTEMSThe characteristics of the used spindle shaft are made from CK45 steel.

The outer layer is hardened with 3.5mm induction to 62 HRC and coated with 0.020 micron chrome plating, increasing strength and resistance while also being resilient to impacts.

The junction point of the two shafts has a precise MK3 tapered locking system.

The assembly of the tapered connection system is very easy, with no axial discharge errors.

MK3 mandrels can be attached to the Morse connection. Hole expansion attachments can be connected to open O-ring and segment channels.

Drilling and guide pulling operations can be applied.

SPINDLE CARRIER BEARING SYSTEMS


BM 50 Standart Technical InformationBM 50 Standart Technical Information

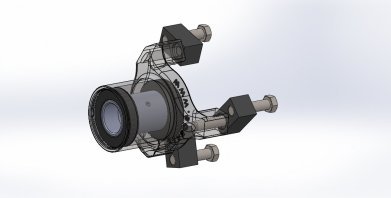

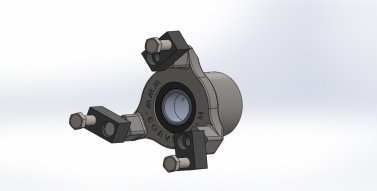

Our spindle carrier bearing system is produced as GGG40 SPHERO Casting. It has the same specifications as the model used in Europe.

It consists of two bearings trapped between a steel carrier inserted into the outer diameter and a 8620 steel bushing system with a hardness of 62 HRC.

The combination of double bearings and steel bushings enhances the quality of the machined surface and facilitates smoother sliding of the spindle. It reduces vibration on the spindle, allowing for higher cutting speed and depth. This increases the machine's operating efficiency by 50%.

FUNCTIONALITIES TECHNICAL DETAILS
  • Internal hole turning
  • Automatic welding inside the hole
  • External welding outside the hole
  • Drilling with Morse taper drill
  • Guide pulling
  • Surface turning (with Kit 180)
  • Gear surface processing (with additional equipment)
  • Creation of segment channels (with Kit 180)

Internal Hole Turning Capacity:
From 42 mm to 400 mm

Internal Hole Welding Capacity:
From 65 mm to 400 mm
MODEL MOTOR TYPE WEIGHT KG ROTATION SPEED STROKE CUTTING CAPACITY CK45 WELDING CAPACITY
BM50 AC SERVO MOTOR 23 KG 230 RPM/DK 110 mm 42-400 mm 60-400
