Control Panel Functions

BM60NC Control Panel Functions

Our BM60NC machine operates with 2 AC SERVO MOTORS and a PLC (Programmable Logic Controller) system.

The reason for this preference is to allow the operator to make adjustments on the touch screen especially when turning at low speeds or making precise welding adjustments.

In addition to this, a touch digital control panel as well as analog buttons are allowed to operate.

ü TURKISH / ENGLISH / RUSSIAN MENU OPTIONS
ü INDEPENDENT CONTROL SYSTEM WITH 2 ADVANCED SERVO MOTOR TECHNOLOGIES
ü TOUCH AND ANALOG CONTROL PANEL
ü DIGITAL RULER START STOP FEATURE
ü ADJUSTABLE TORQUE VALUE
ü PROBLEM CODE PAGE
ü 20 WELDING AND TURNING MEMORY RECORDS
ü HIGH SPEED 180 RPM
ü HIGH TORQUE STABLE 112 NM (SQUEEZING 337 NM)
ü LIGHTNESS 43 KG
ü STROKE 380 MM
ü EXCELLENT WELDING RATIO TURNING AND ADVANCEMENT 0.01 ACCURACY
ü RAPID SPEED 750 MM/MIN.
  • Operating Voltage: AC 230v 50/60 Hz -25 amp.(Max 32 Amp)
  • Digital voltmeter
  • Dokunmatik programlanabilir lcd panel
  • 20 welding and turning values in memory.
  • Power On/Off Switch with Indicator Light
  • Emergency Stop Button

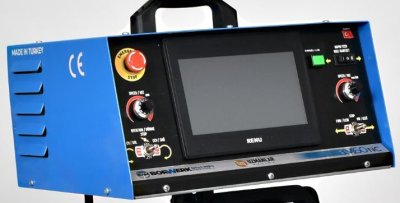

    Ekran Alıntısı
  • Left/Right Rotation Switch
  • Speed Control Dial with 10 Settings
  • Forward/Reverse Switch
  • Speed Control Dial with 10 Settings
  • Quick Movement Button
  • Reset Button
  • Control Screen
  • In addition to this, a touch digital control panel as well as analog buttons are allowed to operate.
