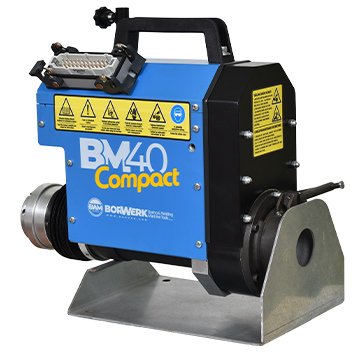

BM 40 Compact Portable BORWERK Machine

seyyar torna makinası compact küçük

The BM/40 COMPACT model is specifically designed for use in places where machine assembly and mobility are limited.

The BM series machines can perform twice as much work as other machines with their high-speed turning feature.

Precision fast servo motor control system.

2 years of electronic and mechanical warranty.

Adjustable chain tensioning system.

MODEL	MOTOR TYPE	WEIGHT KG	ROTATION SPEED	STROKE	CUTTING CAPACITY CK45	WELDING CAPACITY
BM/40 COMPACT	AC SERVO MOTOR	23 KG	230 RPM/DK	110 mm	42-400 mm	58-400

GÜÇTABLOSU

BROŞÜR

MAKİNA DIŞ ÖLÇÜLER

AMBALAJ ÖLÇÜLERİ

FUNCTIONALITIES	TECHNICAL DETAILS
Internal hole turning Automatic welding inside the hole External welding outside the hole Drilling with Morse taper drill Guide pulling Surface turning (with Kit 180) Gear surface processing (with additional equipment) Creation of segment channels (with Kit 180)	Internal Hole Turning Capacity From 42mm to 400mm Internal Hole Welding Capacity From 65mm to 400mm Turning Tool Diameter: 12mm Distance Between Holes: 65mm

FUNCTIONALITIES

TECHNICAL DETAILS

Internal Hole Turning Capacity
From 42mm to 400mm

Internal Hole Welding Capacity
From 65mm to 400mm

Turning Tool Diameter: 12mm

Distance Between Holes: 65mm
