Technical Information

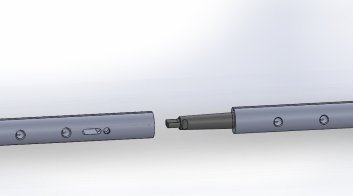

The characteristics of the used spindle shaft are made from CK45 steel.
The outer layer is hardened with 3.5mm induction to 62 HRC and coated with 0.020 micron chrome plating, increasing strength and resistance while also being resilient to impacts.
The assembly of the tapered connection system is very easy, with no axial discharge errors.
Drilling and guide pulling operations can be applied.

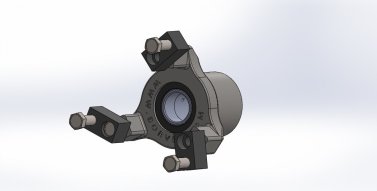

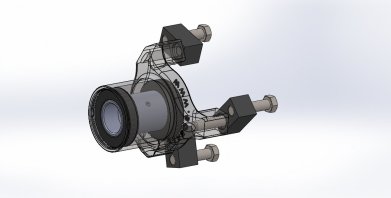

SPINDLE CARRIER BEARING SYSTEMS
Our spindle carrier bearing system is produced as GGG40 SPHERO Casting. It has the same specifications as the model used in Europe.
It consists of two bearings trapped between a steel carrier inserted into the outer diameter and a 8620 steel bushing system with a hardness of 62 HRC.
The combination of double bearings and steel bushings enhances the quality of the machined surface and facilitates smoother sliding of the spindle. It reduces vibration on the spindle, allowing for higher cutting speed and depth. This increases the machine's operating efficiency by 50%.
| FUNCTIONALITIES | TECHNICAL DETAILS |
| Internal Hole Turning Capacity Internal Hole Welding Capacity |
| MODEL | MOTOR TYPE | WEIGHT KG | SPEED/DV./DK. | STROKE | CUTTING CAPACITY CK/45 | WELDING CAPACITY |
| BM50S | AC SERVO MOTOR | 24 KG | 230 RPM/DK | 290mm | 52-450 mm | 60-400 |
Kit 180
20 mm Bar Stock Set (40-20)
30 mm Bar Stock Set
